High-level Design of Twitter

User-system interaction

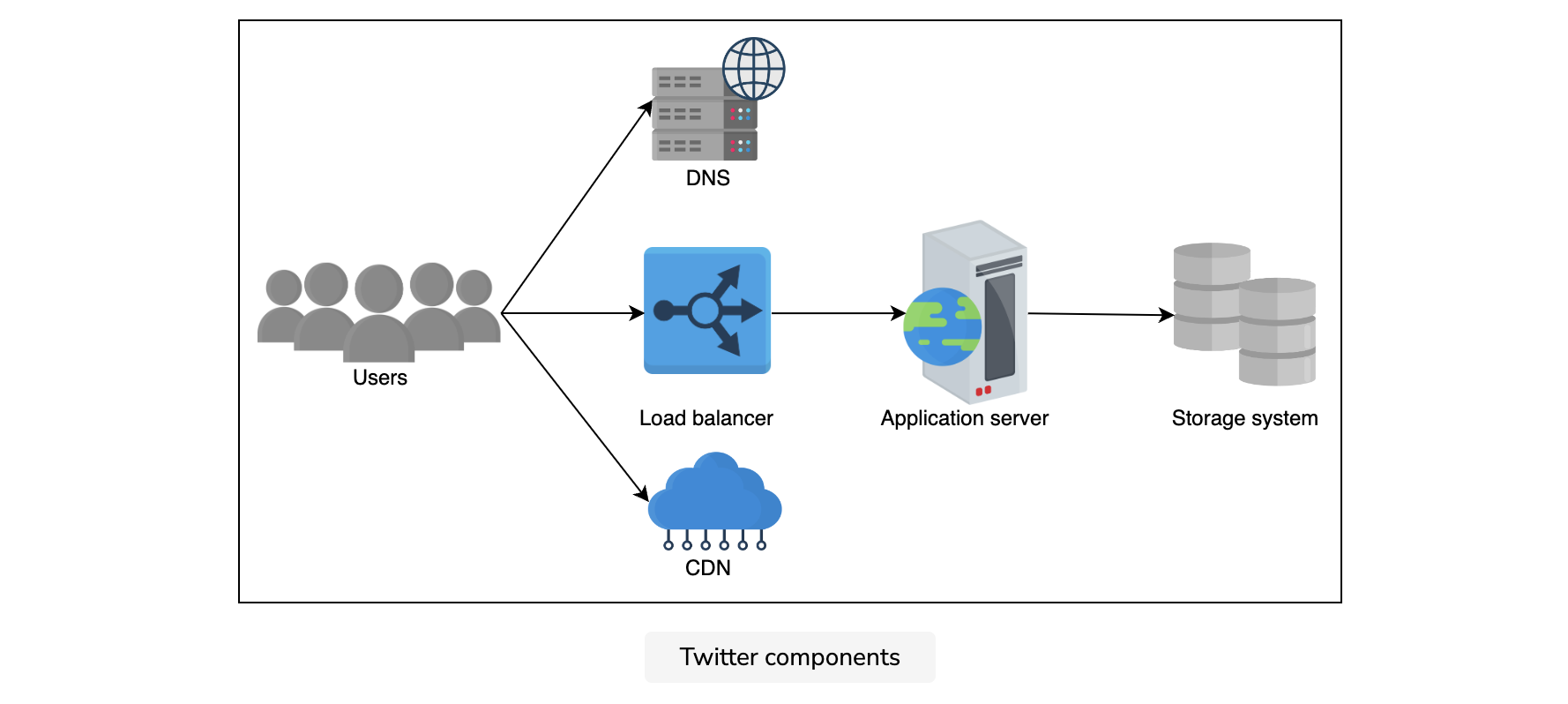

Let’s begin with the high-level design of our Twitter system. We’ll initially highlight and discuss the building blocks, as well as other components, in the context of the Twitter problem briefly. Later on, we’ll dive deep into a few components in this chapter.

• Users post Tweets delivered to the server through the load balancer. Then, the system stores it in persistent storage.
• DNS provides the specified IP address to the end user to start communication with the requested service.
• CDN is situated near the users to provide requested data with low latency. When users search for a specified term or tag, the system first searches in the CDN proxy servers containing the most frequently requested content.
• Load balancer chooses the operational application server based on traffic load on the available servers and the user requests.
• Storage system represents the various types of storage (SQL-based and NoSQL-based) in the above illustration. We’ll discuss significant storage systems later in this chapter.
• Application servers provide various services and have business logic to orchestrate between different components to meet our functional requirements.

We have detailed chapters on DNS, CDN, specified storage systems (Databases, Key-value store, Blob store), and Load balancers in our building blocks section. We’ll focus on further details specific to the Twitter service in the coming lessons. Let’s first understand the service API.

API design

This section will focus on designing various APIs regarding the functionalities we are providing. We learn how users request various services through APIs. We’ll only concentrate on the significant parameters of the APIs that are relevant to our design. Although the front-end server can call another API or add more parameters in the API received from the end users to fulfill the given request, we consider all relevant arguments specified for the particular request in a single API. Let’s develop APIs for each of the following features:

• Post Tweet
• Like or dislike Tweet
• Reply to Tweet
• Search Tweet
• View user or home timeline
• Follow or unfollow the account
• Retweet a Tweet

Post Tweet

The POST method is used to send the Tweet to the server from the user through the /postTweet API.

postTweet(user_id, access_type, tweet_type, content, tweet_length, media_field, post_time, tweet_location, list_of_used_hashtags, list_of_tagged_people)

Let’s discuss a few of the parameters:

#

The rest of the parameters are self-explanatory.

Note: Twitter uses the Snowflake service to generate unique IDs for Tweets. We have a detailed chapter (Sequencer) that explains this service.

Question 1

At most, how many hashtags can a Tweet have?

The text limit is 280 characters in a Tweet. So, users can use the hashtag(s) such that text length (including plain text, any links, and hashtags) does not exceed the limit of 280 characters.

Question 2

What is the need for the list_of_tagged_people in the /postTweet API?

Hide Answer

The system has to notify the people tagged in the Tweet.

------------------------

Like or dislike Tweet

The /likeTweet API is used when users like public Tweets.

likeTweet(user_id, tweet_id, tweeted_user_id, user_location)

#

The parameters above are also used in the /dislikeTweet API when users dislike others’ Tweets.

Reply to Tweet

The /replyTweet API is used when users reply to public Tweets.

replyTweet(user_id, tweet_id, tweeted_user_id, reply_type, reply_length)

The reply_type and reply_length parameters are the same as tweet_type and tweet_length respectively.

Search Tweet

When the user searches any keyword in the home timeline, the GET method is used. The following is the /searchTweet API:

searchTweet(user_id, search_term, max_result, exclude, media_field, expansions, sort_order, next_token, user_location)

Some new parameters introduced in this case are:

#

Response

Let’s look at a sample response in JSON format. The id is the user’s unique ID who posted the Tweet and the text is the Tweet’s content. The result_count is the count of the returned Tweet, which we set in the max_result in the request. Here, we’re displaying the default fields only.

Click to see response in JSON

Note: Twitter performs various types of searches. The following are two of them:

• One search type returns the result of the last seven days, which all registered users usually use.
• The other type returns all matching results on all Tweets ever posted (remind that service does not delete a posted Tweet). Indeed, matches can contain the first Tweet on Twitter. This search is usually used for academic research.

View home_timeline

The GET method is suitable when users view their home timelines through the /viewHome_timeline API.

viewHome_timeline(user_id, tweets_count, max_result, exclude, next_token, user_location)

In the /viewUser_timeline API, we’ll exclude the user_location to get the user timeline.

The max_rsult parameter determines the number of tweets a client application can show the user. The server sends the max_result number of tweets in each response. Further, the server will also send a paginated list_of_followers to reduce the client latency.

Question

Which parameter in the viewHome_timeline method is the most relevant when deciding which promoted ads (Tweets) to be returned in response?

The decision to send specified promoted ads is made on the user_location parameter. For example, the user belongs to the NewYork city, so most probably it gets promoted ads associated or originated in that region.

---------------------

Follow the account

The /followAccount API is used when users follow someone’s account on Twitter.

followAccount(account_id, followed_account_id)

#

The /unfollowAccount API will use the same parameters when a user unfollows someone’s account on Twitter.

Retweet a Tweet

When a registered user Retweets (re-posts) someone’s Tweet on Twitter, the following /retweet API is called:

retweet(user_id, tweet_id, retweet_user_id)

The same parameters will be required in the /undoRetweet API when users undo a Retweet of someone’s Tweet.
